Displays and Output
Noise Band Displays and Output
Displays

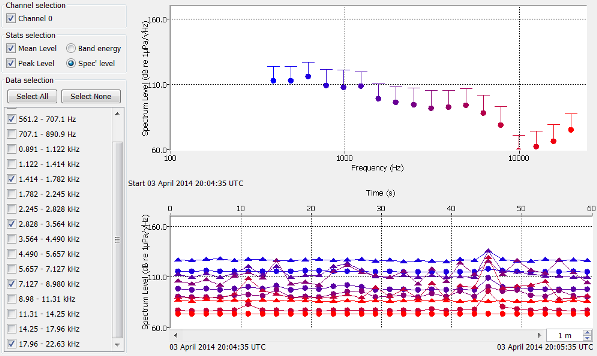

The displays are very similar for the Noise Monitor and the Noise Band Monitor
The user can select which bands to show on the scrolling display of sound pressure vs. time.
In real time operation, the levels in individual bands are shown in the upper display.
You can select to show either SPL across each band or spectrum level estimates.
Right click on the lower display for display options.
Output
Measurements are written to both the Database and the Binary Store if those modules are present in the PAMGuard configuration.
