Displays
The Mel Spectrogram data can display on a normal Spectrogram Display.

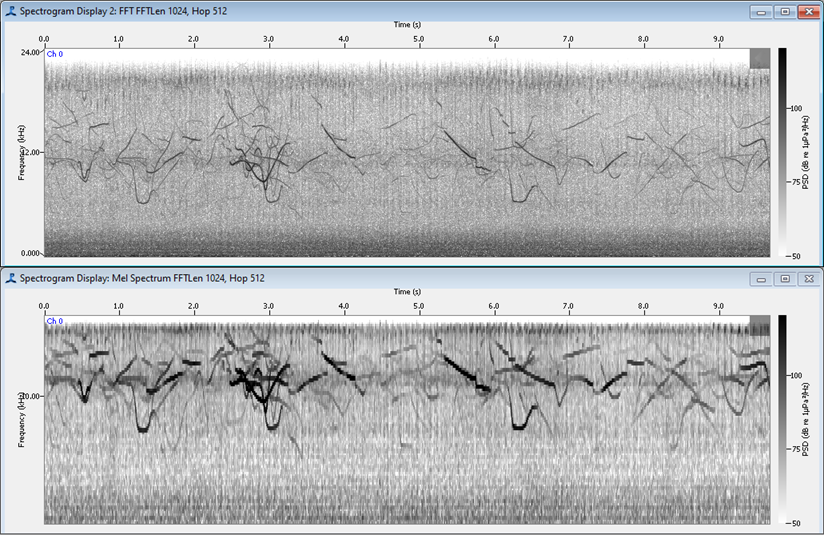

The example below shows dolphin whistles on both a normal Spectrogram Display using the FFT data and also the display of the Mel Spectrogram data.
Detectors and other modules
Our long term goal is that the Mel spectrogram data could be fed into any detector that would normally take FFT data. However, many detectors will need code updates to support this. Currently only the Whistle and Moan detector has been tested with Mel Spectrogram input.
Also note that phase information is lost when calculating the Mel Spectrogram, so Mel Spectrogram data are not suitable for localisation tasks based on Time Difference of Arrival measurements.
